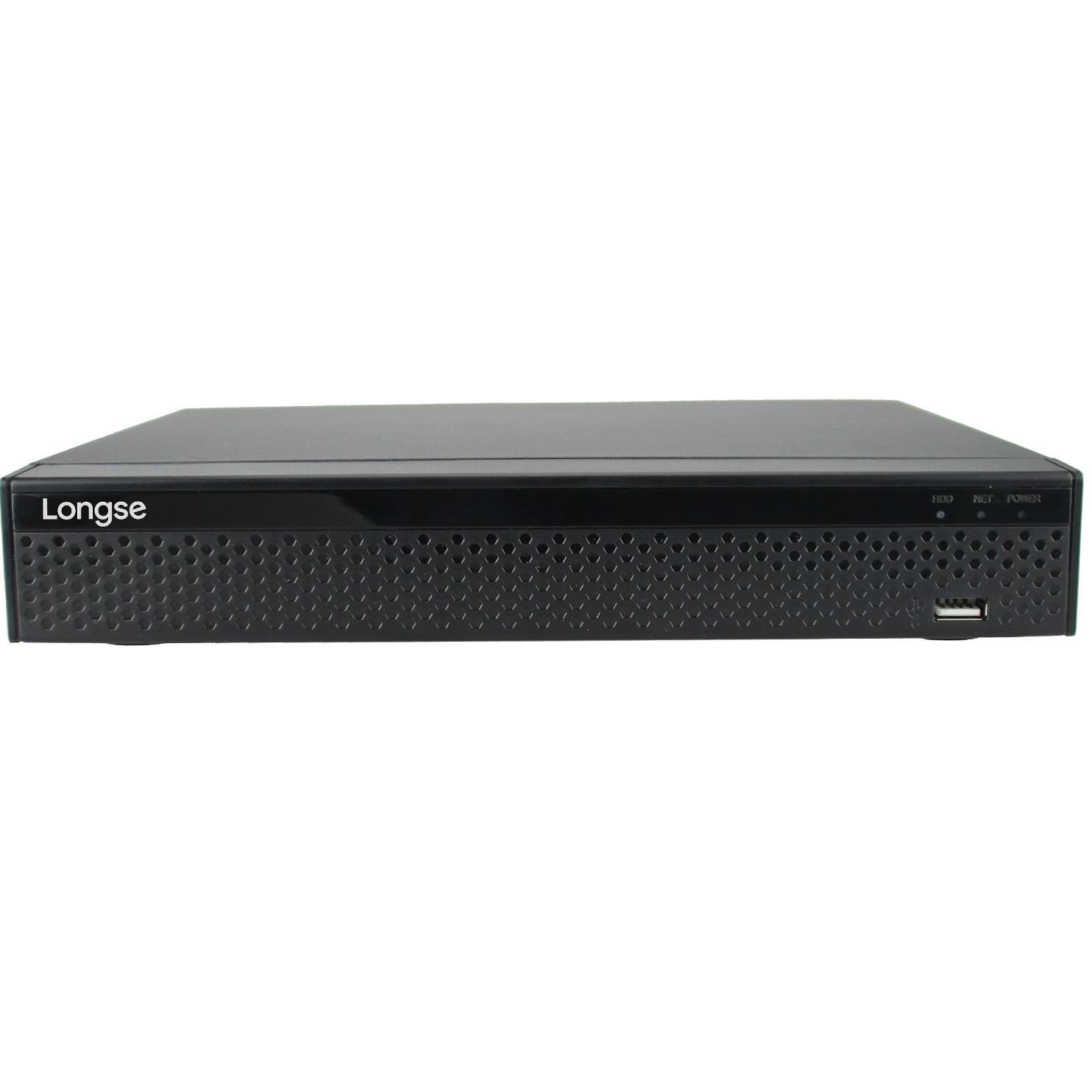

Grabador Digital LONGSE

CARACTERISTICAS

Se incluye Fuente de Alimentacion 12vcc (En los modelos de 4 canales es de 3A. En los de 8 y 16 de 5A)System

Main Processor HI3521A
Operating System Embedded LINUX
Video
Input Analog: 4 - 8 ó 16 *(TVI/AHD: 5M; AHD/TVI/CVI: 4M; AHD/TVI: 3M; AHD/TVI/CVI: 1080P/720P; Analog: 960H)
Analog+Network:2*Analog+7*network(Max 8MP)
Network: 16*network(Max 8MP)(Total incoming bandwidth ≤80M)
Input 4CH BNC
Signal Type Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network
Output 1 HDMI,1 VGA, 1CVBS
Audio
Input 4Channel, RCA
Two-way Audio NO
Output 1 Channel, RCA
Alarm
Sensor Input NO
Output NO
Motion Detection 4 Channel(max 16 Channel in pure network mode)
Trigger Events Recording, Alarm, Email, Screen tips, Buzzer
Email Alarm Send Image to The Designated E-mail
PTZ
Interface RS485
Protocol Pelco-D, Pelco-P
Baud Rate 110~921600
Address 0~255

Display
VGA resolution: 1920 × 1080P /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz,1024 × 768 /60Hz
HDMI Resolution:2560*1440/30Hz, 1920 × 1080P /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz,1024 × 768 /60Hz
Display Split 16 Channel/9 Channel/8 Channel/4 Channel / 1Channel
Privacy Masking 1 Rectangular Zones (Each camera)
OSD Camera title, Time, Video loss, Alarm, Motion detection, Recording
Recording
Video Compression H.264
Audio Compression G711u
Resolution 5MP(2592×1944), 5MP_HALF(1296×1944), 4MP(2560×1440), 4MP_HALF(1280×1440), 3MP(2048×1536), 1080P(1920×1080), 720P(1280×720), 960H(P:960×576/N:960×480)
Video Quality worst/worse/ordinary/well/best
Record Rate Analog: PAL:5MP(2592×1944 4*12fps), 5MP_HALF(1296×1944 4*20fps), 4MP(2560×1440 4*15fps), 4MP_HALF(1280×1440 4*25fps), 3MP(2048×1536 4*18fps); 1080P(1920x1080 4*25fps), 720P(1280×720 4*25fps), 960H(960×576 4*25fps)
NTSC: PAL:5MP(2592×1944 4*12fps), 5MP_HALF(1296×1944 4*20fps), 4MP(2560×1440 4*15fps), 4MP_HALF(1280×1440 4*30fps), 3MP(2048×1536 4*18fps), 1080P(1920x1080 4*30fps), 720P(1280×720 4*30fps), 960H(960×480 4*30fps)
Pure IP: PAL:4k@6×25fps, 5MP@8×25fps, 4MP@11x25fps, 3MP@11×25fps, 1080P@16×25fps, 960P@16×25fps, 720P@16×25fps, D1@16×25fps
NTSC: 4k@6×30fps, 5MP@8×30fps, 4MP@11×30fps, 3MP@11×30fps, 1080P@16×30fps, 960P@16×30fps, 720P@16×30fps, D1@16×30fps
Record Mode ManualTimerMotion Detection

Playback & Backup
Decode Capability 4CH 1080P@30fps
Sync Playback Pure Analog: 4CH 5M@12fps, 4CH 4M@15fps, 4CH 3M@18fps, 4CH 1080p@30fps
Mix Mode: 2CH 1080P@30fps+1CH 1080N@12fps
Pure IPC: 1CH 4K@30fps, 1CH 5MP@30fps, 2CH 4MP@30fps, 3CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps
Remote Playback 4 Channel / 1 Channel
Search Mode ALL, Channel, Manual, Time, Date, Motion Detection
Playback Functions Play, Pause, Stop, Fast play, Rewind
Smart Phone Playback 4 Channel
Backup Mode USB Device/Network

Network
Interface 1 RJ45 10M/100 Adaptive Ethernet Interface
Network Functions HTTP, IPv4,IPv6, TCP/IP, SMTP, DHCP, DNS, PPPOE, DDNS, NTP, FTP, UPNP
DDNS Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES
Web Browser IE8-11, Google Chrome (IE Tab), Firefox (IE Tab)
CMS Software Support Windows 7/ Windows 8/Windows 10
Extra Stream CIF(1~25fps)
Smart Phone iPhone, ipad, Android ,Android pad

Hard Disk Driver
Interface Type 1 SATA Interface
Capacity 2.5"/3.5" SATA, Up to 6TB
CARACTERISTICAS
General
Language Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa
German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, korean, Dutch, Greek
UTC Control YES
USB Interface 2 USB 2.0 Interfaces
Power consumption DC 12V ≤6W (Without Hard Disk) (fuente no incluida)
Working Environment -10~55℃/10~90%
Dimension (W×D×H) 260*215*43(mm)
Weight 2.0kg (Without HDD)
